Add Collaborative Whiteboard

Enable real-time shared whiteboard for drawing and brainstorming in chat.

AI Agent Component Spec

{
  "component": "CollaborativeWhiteboardExtension",
  "package": "@cometchat/chat-uikit-react",
  "import": "import { CollaborativeWhiteboardExtension } from \"@cometchat/chat-uikit-react\";",
  "cssImport": "import \"@cometchat/chat-uikit-react/css-variables.css\";",
  "description": "Enables real-time collaborative whiteboard for drawing, sketching, and visual brainstorming in chat conversations.",
  "dashboardSetup": "Enable Collaborative Whiteboard in CometChat Dashboard > Extensions > Collaboration",
  "autoIntegration": {
    "messageComposer": "Whiteboard button appears in action sheet",
    "messageList": "Whiteboard messages render with preview and join link"
  }
}

Overview

This guide shows you how to add collaborative whiteboard functionality to your chat. Whiteboards let users draw, sketch, and brainstorm together in real-time.

Time estimate: 5 minutes
Difficulty: Beginner

Prerequisites

• React.js setup complete
• Groups configured
• CometChat account with Collaboration extensions

Steps

Step 1: Enable Whiteboard Extension

1. Go to your CometChat Dashboard
2. Navigate to Extensions → Collaboration
3. Enable Collaborative Whiteboard

Step 2: Auto-Integration

Once enabled, whiteboard automatically integrates into your chat:

import {
  CometChatMessageList,
  CometChatMessageComposer,
} from "@cometchat/chat-uikit-react";
import { CometChat } from "@cometchat/chat-sdk-javascript";
import "@cometchat/chat-uikit-react/css-variables.css";

function ChatWithWhiteboard({ group }: { group: CometChat.Group }) {
  return (
    <div style={{ display: "flex", flexDirection: "column", height: "100vh" }}>
      <CometChatMessageList group={group} />
      <CometChatMessageComposer group={group} />
    </div>
  );
}

export default ChatWithWhiteboard;

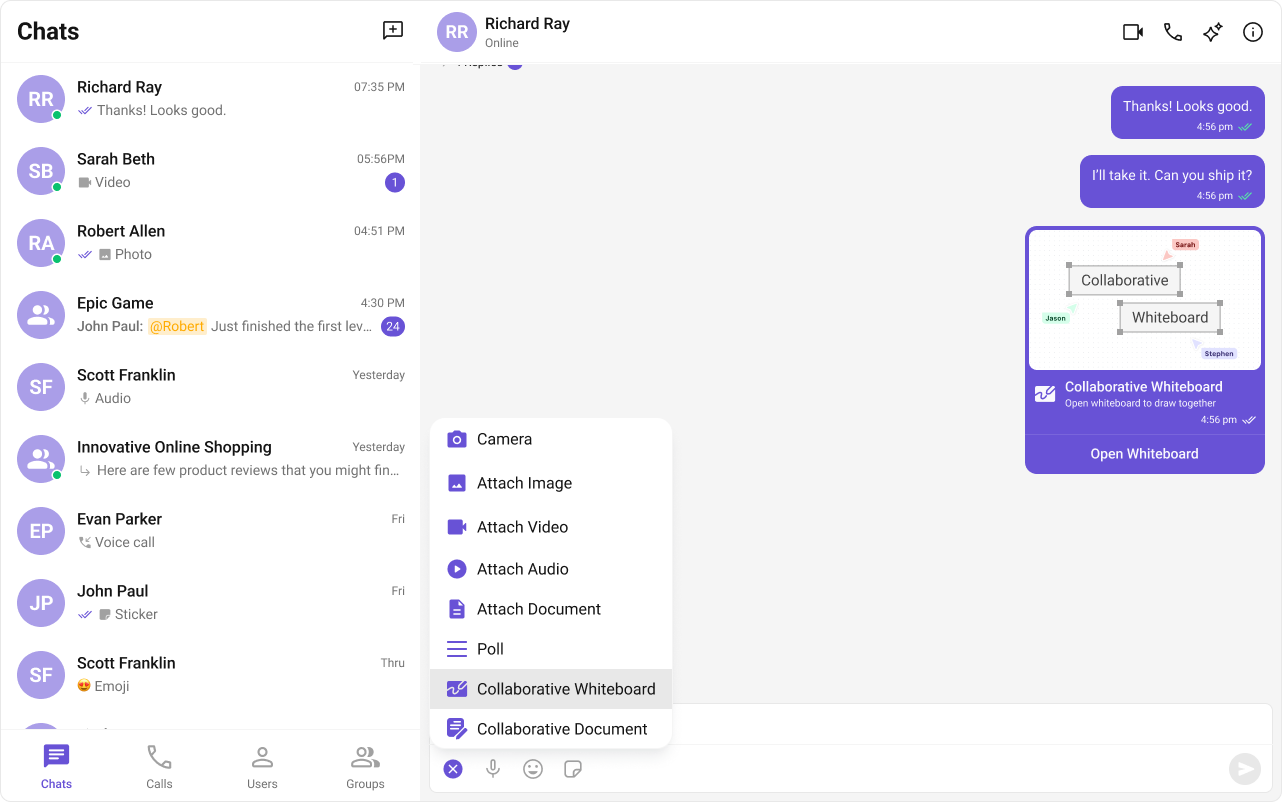

The whiteboard button appears in the message composer’s action sheet.

Step 3: Create a Whiteboard Session

Users can create whiteboards through the UI:

1. Click the attachment/action button in the message composer
2. Select “Collaborative Whiteboard”
3. A whiteboard session is created and shared in the chat

Step 4: Join Whiteboard Sessions

When a whiteboard message appears:

1. Click the whiteboard message to open it
2. All participants can draw simultaneously
3. Changes sync in real-time

Complete Example

Full group chat with whiteboard:

import { useState, useEffect } from "react";
import {
  CometChatMessageList,
  CometChatMessageComposer,
  CometChatMessageHeader,
} from "@cometchat/chat-uikit-react";
import { CometChat } from "@cometchat/chat-sdk-javascript";
import "@cometchat/chat-uikit-react/css-variables.css";

function WhiteboardGroupChat() {
  const [group, setGroup] = useState<CometChat.Group | null>(null);

  useEffect(() => {
    CometChat.getGroup("GROUP_ID").then(setGroup);
  }, []);

  if (!group) return <div>Loading...</div>;

  return (
    <div style={{ display: "flex", flexDirection: "column", height: "100vh" }}>
      <CometChatMessageHeader group={group} />

      <div style={{ flex: 1, overflow: "hidden" }}>
        <CometChatMessageList group={group} />
      </div>

      <CometChatMessageComposer group={group} />
    </div>
  );
}

export default WhiteboardGroupChat;

Advanced Configuration

Create Whiteboard Programmatically

import { CometChat } from "@cometchat/chat-sdk-javascript";

async function createWhiteboard(groupId: string) {
  try {
    const response = await CometChat.callExtension(
      "whiteboard",
      "POST",
      "v1/create",
      {
        receiver: groupId,
        receiverType: CometChat.RECEIVER_TYPE.GROUP,
      }
    );
    console.log("Whiteboard created:", response);
    return response;
  } catch (error) {
    console.error("Error creating whiteboard:", error);
    throw error;
  }
}

Custom Whiteboard Configuration

import {
  CometChatMessageComposer,
  CollaborativeWhiteboardConfiguration,
} from "@cometchat/chat-uikit-react";
import { CometChat } from "@cometchat/chat-sdk-javascript";

function ComposerWithCustomWhiteboard({ group }: { group: CometChat.Group }) {
  const whiteboardConfig = new CollaborativeWhiteboardConfiguration({
    // Custom configuration options
  });

  return (
    <CometChatMessageComposer
      group={group}
      collaborativeWhiteboardConfiguration={whiteboardConfig}
    />
  );
}

Listen for Whiteboard Events

import { useEffect } from "react";
import { CometChat } from "@cometchat/chat-sdk-javascript";

function useWhiteboardEvents() {
  useEffect(() => {
    const listenerId = "whiteboard-listener";

    CometChat.addMessageListener(
      listenerId,
      new CometChat.MessageListener({
        onCustomMessageReceived: (message: CometChat.CustomMessage) => {
          if (message.getType() === "extension_whiteboard") {
            console.log("Whiteboard message received:", message);
          }
        },
      })
    );

    return () => CometChat.removeMessageListener(listenerId);
  }, []);
}

Styling

Customize whiteboard message appearance:

.cometchat-whiteboard-bubble {
  background: #ffffff;
  border-radius: 12px;
  padding: 12px;
  max-width: 280px;
}

.cometchat-whiteboard-bubble__preview {
  width: 100%;
  height: 150px;
  background: #f5f5f5;
  border-radius: 8px;
  display: flex;
  align-items: center;
  justify-content: center;
}

.cometchat-whiteboard-bubble__title {
  font-weight: 600;
  margin-top: 8px;
}

.cometchat-whiteboard-bubble__join-button {
  width: 100%;
  padding: 10px;
  margin-top: 8px;
  border-radius: 8px;
  background: #6852d6;
  color: #ffffff;
  border: none;
  cursor: pointer;
}

.cometchat-whiteboard-bubble__join-button:hover {
  background: #5741c7;
}

Common Issues

Collaborative Whiteboard works best in group conversations. For 1:1 chats, consider using the Collaborative Document extension instead.

Issue	Solution
Whiteboard button not showing	Enable extension in Dashboard
Can’t join session	Check if session is still active
Drawing not syncing	Verify network connectivity
Session expired	Create a new whiteboard session
